Chapter 6


Basic Scrubbing

At home you can take your time picking a lock, but in the field, speed is always essential. This chapter presents a lock picking technique called scrubbing that can quickly open most locks.

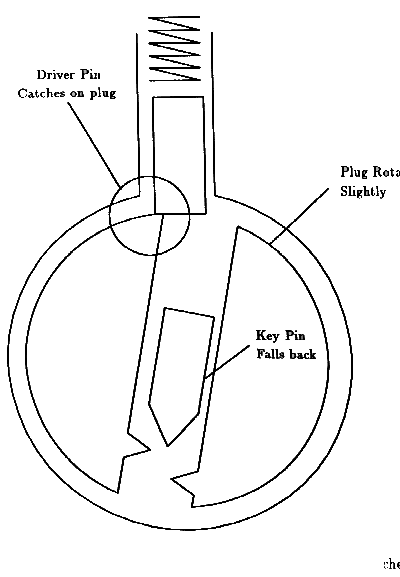

The slow step in basic picking (chapter 4) is locating the pin which is binding the most. The force diagram (Figure 5.5) developed in chapter 5 suggests a fast way to select the correct pin to lift. Assume that all the pins could be characterized by the same force diagram. That is, assume that they all bind at once and that they all encounter the same friction. Now consider the effect of running the pick over all the pins with a pressure that is great enough to overcome the spring and friction forces but not great enough to overcome the collision force of the key pin hitting the hill. Any pressure that is above the flat portion of the force graph and below the top of the peak will work. As the pick passes over a pin, the pin will rise until it hits the hull, but it will not enter the hull. See Figure 5.3. the collision force at the sheer line resists the pressure of the pick, so the pick rides over the pin without pressing it into the hill. If the proper torque is being applied, the plug will rotate slightly. As the pick leaves the pin, the key pin will fall back to its initial position, but the driver pin will catch on the edge of the plug and stay above the sheer line. See figure 6.1. In theory one stroke of the pick over the pins will caue the lock to open. Figure 6.1 - p18-nt.gif

In practice, at most one or two pins will set during a single stroke of the pick, so several strokes are necessary. Basically, you use the pick to scrub back and forth over the pins while you adjust the amount of torque on the plug. The excercises in chapter 8 will teach you how to choose the correct torque and pressure.

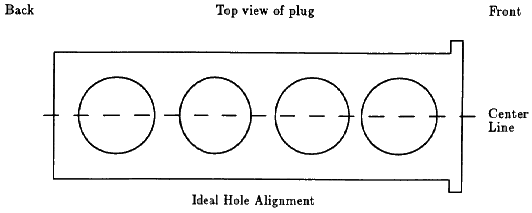

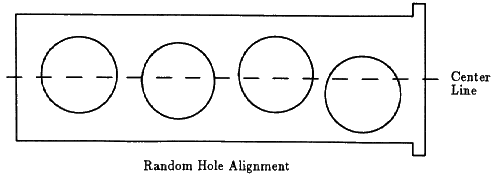

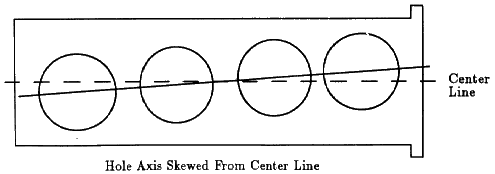

You will find that the pins of a lock tend to set in a particular order. Many factors effect this order (See chapter 9), but the primary cause is a misalignment between the cetner axis of the pug and the axis on which the holes were drilled. See figure 6.2. If the axis of the pin holes is skewed from
Figure 6.2 - p19a-nt.gif Figure 6.2 - p19b-nt.gif Figure 6.2 - p19c-nt.gif
the center line of the plug, then the pins will set from back to front if the plug is turned one way, and from front to back if the plug is turned the other way. Many locks have this defect. Scrubbing is fast because you don't need to pay attention to individual pins. You only need to find the correct torque and pressure. Table 6.1 summarizes the steps of picking a lock by scrubbing. The exercises will teach you how to recognize when a pin is set and how to apply the correct forces. If a lock doesn't open quickly, then it probably has one of the characteristics described in chapter 9 and you will have to concentrate on individual pins.

Table 6.1: Basic scrubbing

  1. Insert the pick and torque wrench. Without applying any torque pull the pick out to get a feel for the stiffness of the lock's springs.
  2. Apply a light torque. Insert the pick without touching the pins. As you pull the pick out, apply pressure to the pins. The pressure should be slightly larger than the minimum necessary to overcome the spring force.
  3. Gradually increase the torque with each stroke of the pick until pins begin to set.
  4. Keeping the torque fixed, scrub back and fourth over the pins that have not set. If additional pins do not set, release the torque and start over with the torque found in the last step.
  5. Once the majority of the pins have been set, increase the torque and scrub the pins with a slightly larger pressure. This will set any pins which have not set low due to beveled edges, etc.
